    Description

    one-clamp semi-automatic perfect binding machine PUR / Hot-Melt

    TECNOGRAF ANT 250 PUR/Hot-Melt
    age 2009

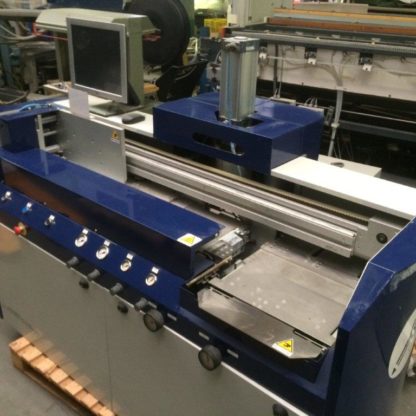

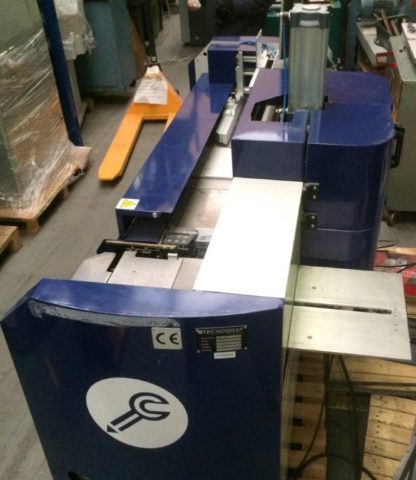

    The ANT 250 PUR / Hot-Melt is a compact and semi-automatic one-clamp perfect binding machine for short and medium runs.

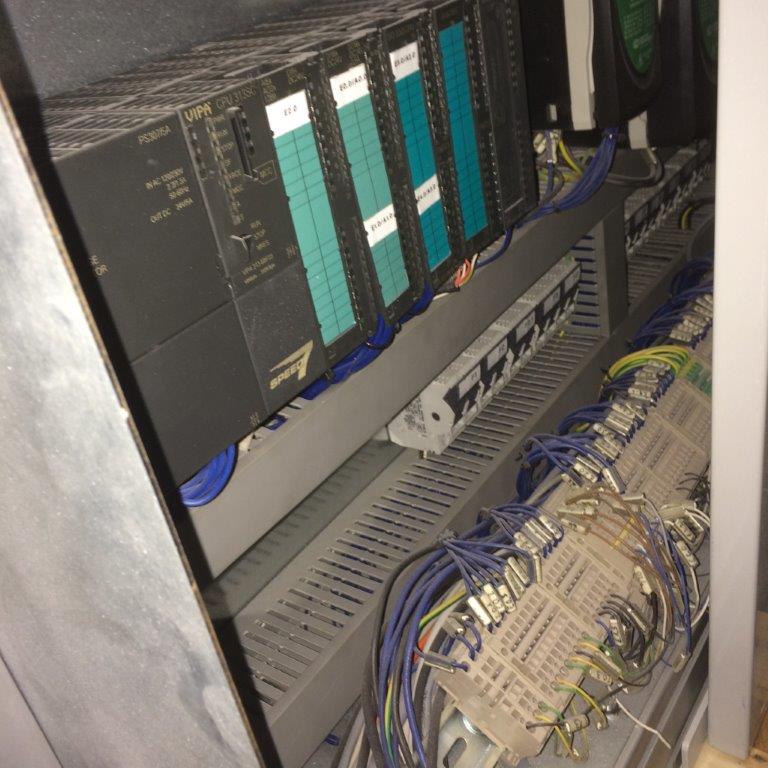

    The ANT 250 is completely controlled by PLC and is equipped with an innovative PUR / Hot-Melt gluing system.
    The technology and the special design ensure the maximum safety for the operator and the highest binding quality.

    Features:
    Touch-Screen
    Pressing spine unit

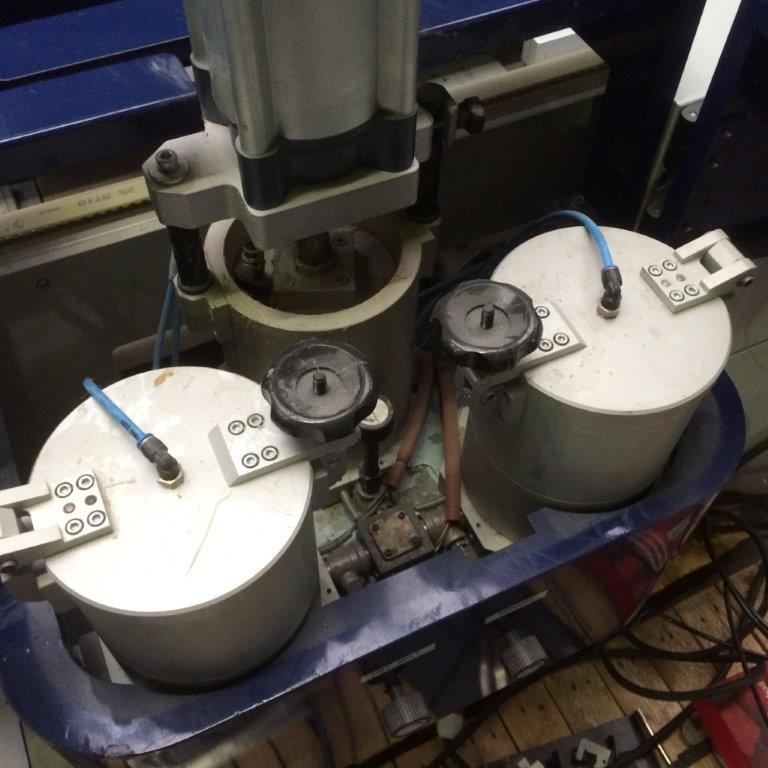

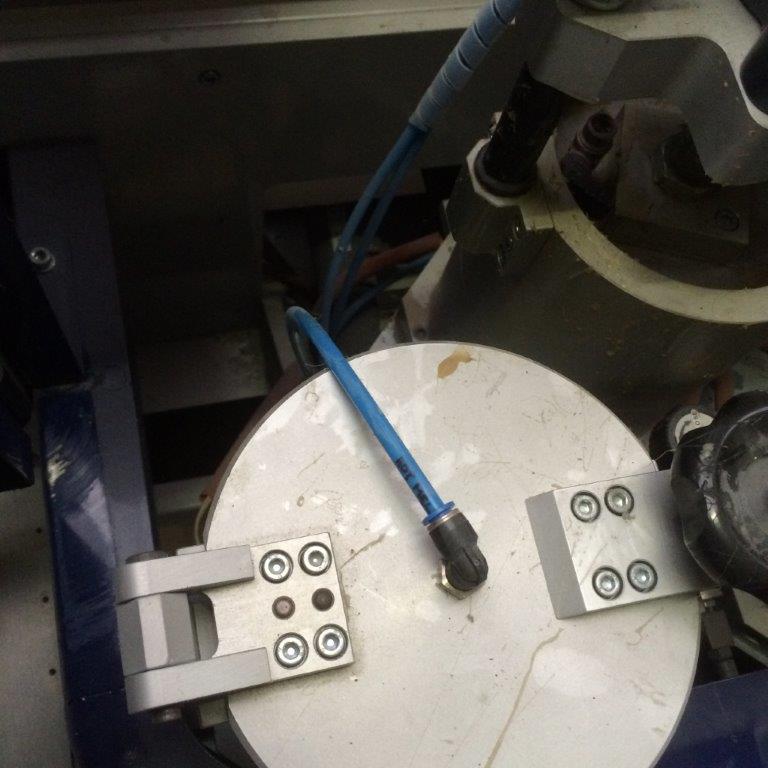

    Professional PUR / Hot-melt application system

    Technical data
    Book size  min 100 x 100 mm (w x h)
    Book size  max 350 x 420 mm (w x h)
    Thickness min  1 mm
    Thickness max 50 mm (milled blocks)
    Thickness max 80 mm (sewn blocks)
    Cycle speedapprox. 250 Cycles/hour
    Electrical requirementsapprox. 3 kW
    Floor space 2.500 mm x 1.105 mm (l x w)

    Additional information

    Baujahr

    2009

    Manufacturer

    TECNOGRAF

    Typ
