Description

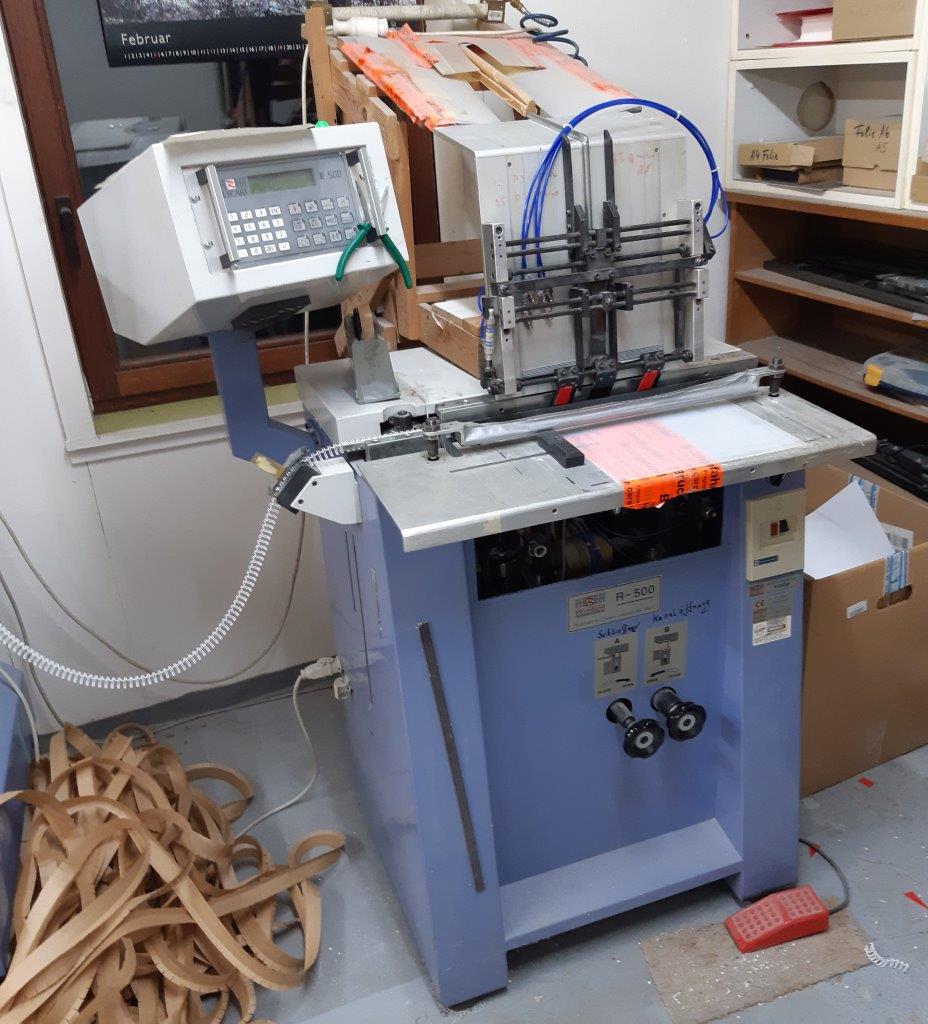

Ring binder and calendar binding machine Rilecart R-500
Including tools for using spiral wire on rolls Star transport for 3: 1 division
Closing tool and mandrel for 1/4 “diameter
Dispenser for hanger
Year of construction 1999 low used
Wire binding with WireBind Rilematic® wire on spools
High flexibility, because 7 different binding strengths from 3/16 to 9/16,
can be used with the appropriate tools
Maximum binding length 500 mm, minimum 50 mm
Maximum binding thickness: 11.5 mm with pre-cut sides
-Can bind one length of wire, or two identical lengths of wire for wall calendars, or up to five for skip ties
-Microprocessor-controlled operation

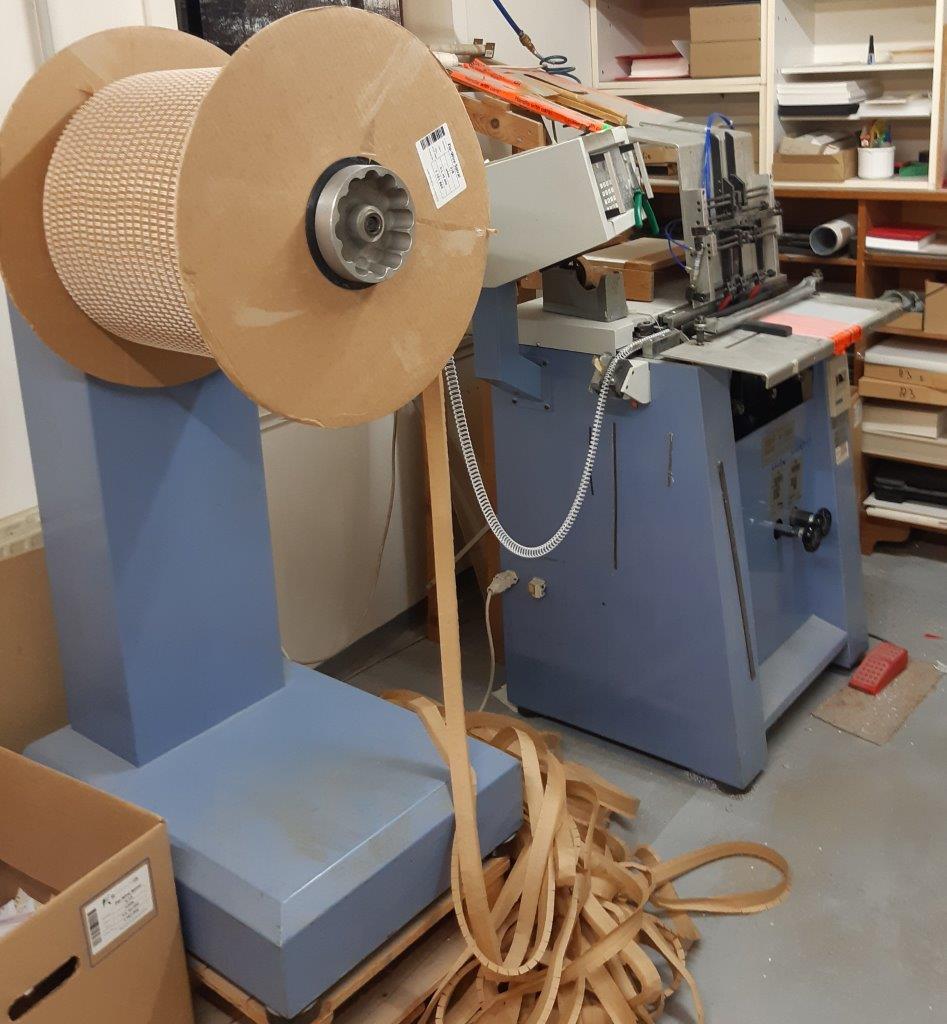

-Automatic reel unwinder with integrated waste paper rewinder for a continuous supply of the machine
-Electrically and pneumatically driven
-Max. Speed: 1000 cycles per hour
the actual speed depends on the skill of the operator and the product characteristics.
Technical specifications:
Power supply: 240 V / 50-60Hz;
Required compressed air supply: 6 bar – 150 lt / min
Size: 1100 x 800 x 1200 mm;
Weight: 485 kg
