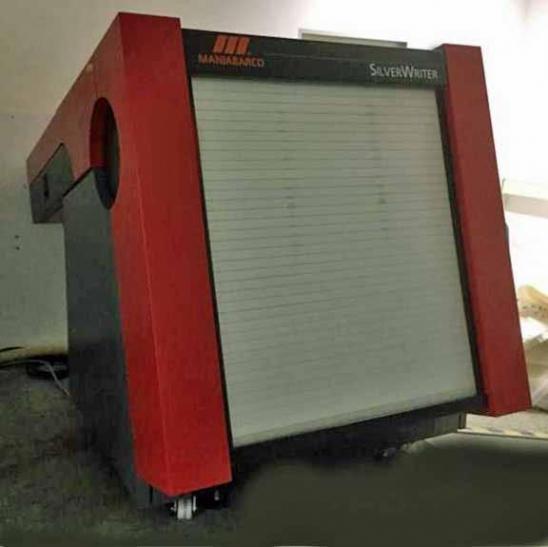

PCB Laser Photoplotter for Printed Circuit Board Manufacturing
Mania Barco Esko Graphic Silver Writer with Agfaline HT 86 online PCB development machine
Year of manufacture 2004
Film size: 813x711mm
Available resolutions:
for full size 2000, 2540, 4000, 5080, 8000, 10000, 10160, 16000 ppi
with limitation of the exposure area to (810x639mm) 20000, 20320 ppi
with limitation of the exposure area to (810x395mm) 25000 and 25400 ppi
1 film magazine for 150 sheets
The laser is split into 24 beams, a 4000ppi plot takes at normal arc-filling
Data structure approx. 8 minutes, at 25400ppi approx. 35 min.
Powerrip PC (pre-installed, with interface card), this processes Barco DPF files
up to 25400ppi. The rip license is limited in time and must be renewed by the manufacturer.
be renewed.
