Description

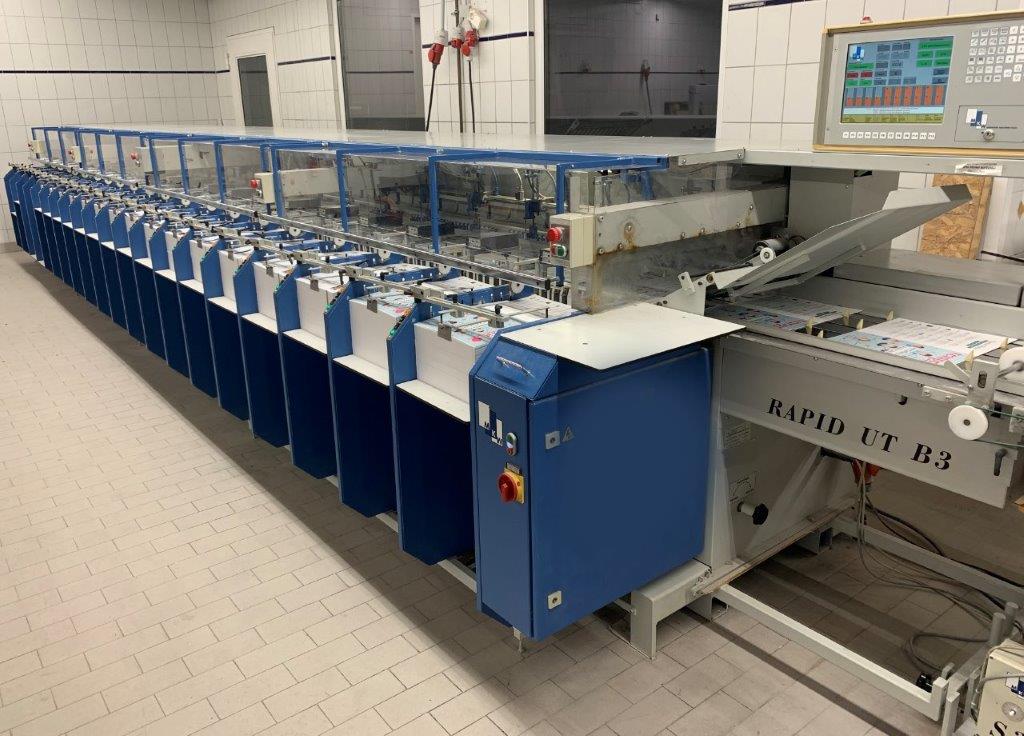

MKW UT with 20 gathering stations and stapling / folding / cutting unit
from 2004
Totalizator stands at around 15 million,
the computer was replaced in 2017 and therefore shows a lot less.
We have therefore reconstructed the meter reading from maintenance logs.
Format: min. 10 x 14 cm
Format: max. 35 x 50 cm
Furnishing:

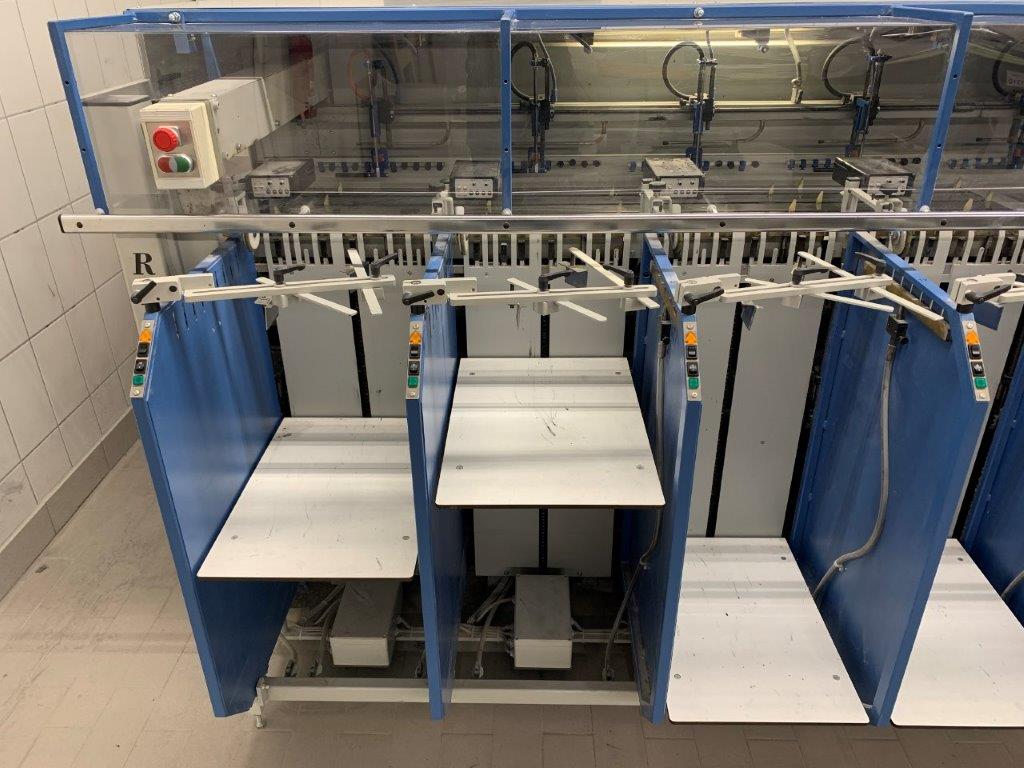

20 stations gathering machine with hand allowance on the left
Cycle performance 2900 per hour
Revolving toothed belt table
self-calibrating electronic double and missing sheet control
max.stacking height 700 mm
Paper weight from 14 – 1000 g / sqm

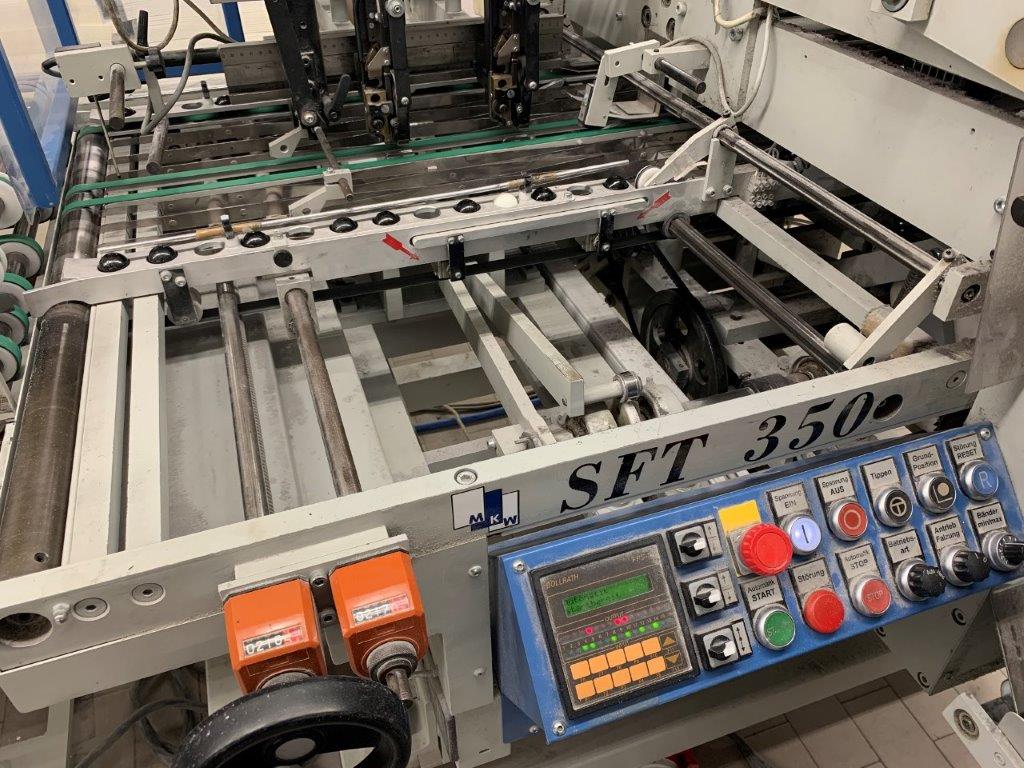

Brochure production MKW stitching, folding and cutting unit SFT 350
Quick format adjustment
Front trim with 6cm minimum trim over the upper and lower knife
Blow-off air on the knife
Adjustable pressing device

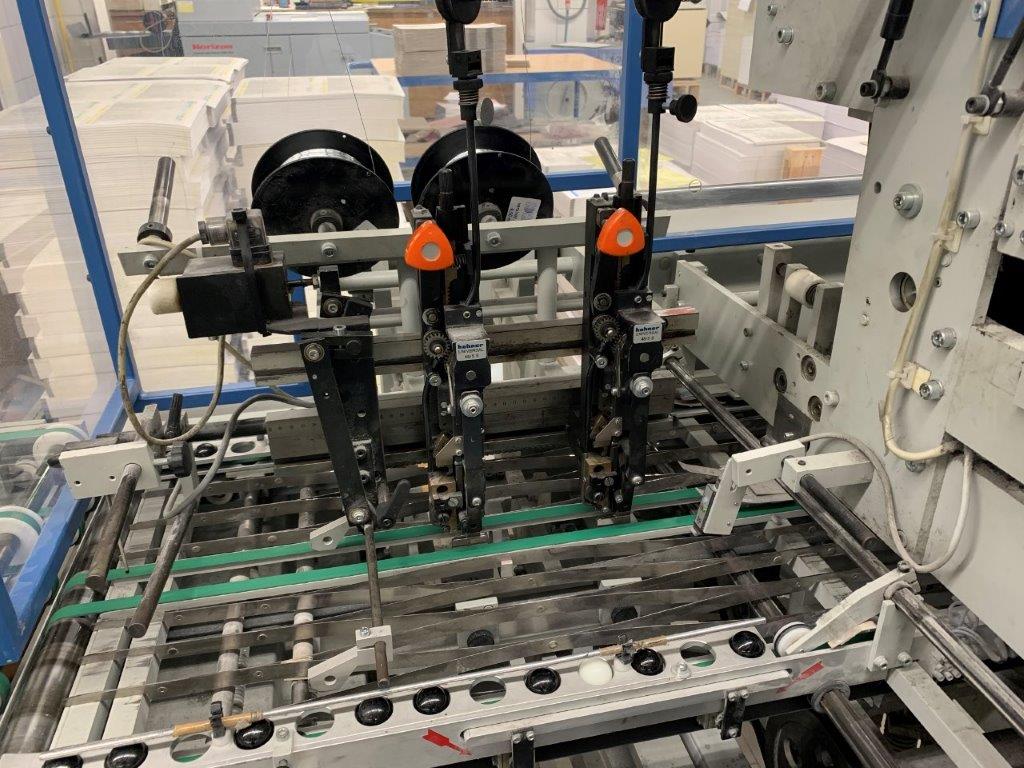

2 stapling heads Hohner 48 / S

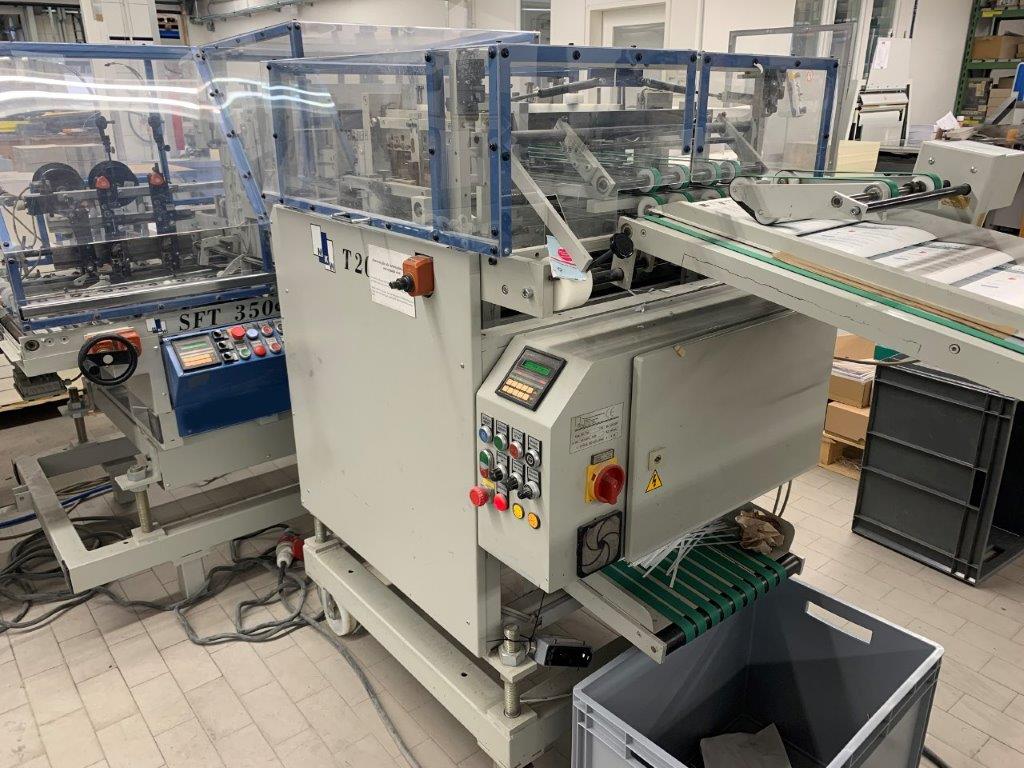

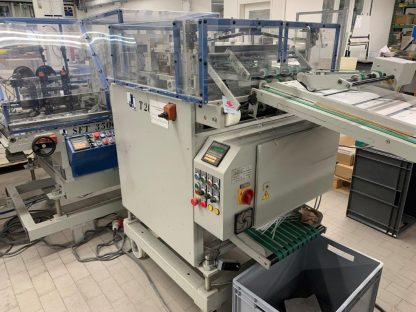

Exact head and foot trim MKW T-20
The ideal double trimmer for brochure production inline with the MKW SFT®.
With integrated intermediate cut (optionally not included in delivery)
there is the possibility of production in multiple use e.g. CD booklets
