Description

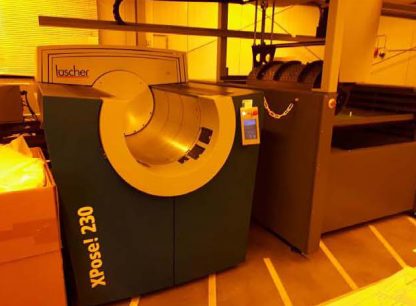

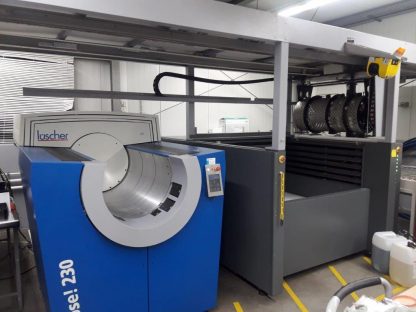

- Lüscher XPose 230 UV + PHS and TiFF Shooter incl. Computer hardware for offset plates and water-based washout flexographic plates
- 405 nm UV diodes for conventional offset printing plates and diazo films as well as coating plates from Mac Dermid (rotary screens from Gallus, Kocher + Beck and Stork can also be exposed with 405 nm UV without any problems
- Laser diodes with 375 nm are used for direct exposure of water-washable flexographic printing plates or conventional letterpress printing plates without LAMS layer
- 32 lase diodes with 375 nm for water-based washout flexographic printing plates
- 16 laser diodes with 405 nm
- Inline punch for Bacher 2000 Autoplate 780 mm and 425 m
- plate counter: 58,736 plates
- laser time: 4,030 hours
- sliprint revolutions: 30894729

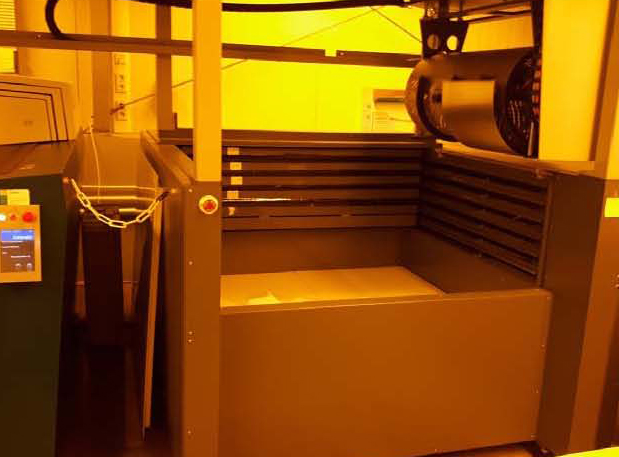

- Lüscher Plate-Handling System PHS 230 with five plate magazines (can be omitted on request)

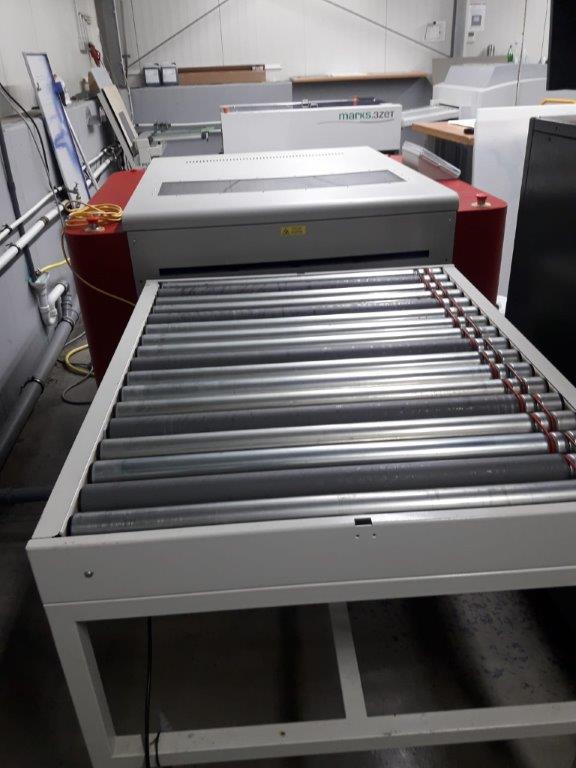

- Transport table Glunz & Jensen IP 66

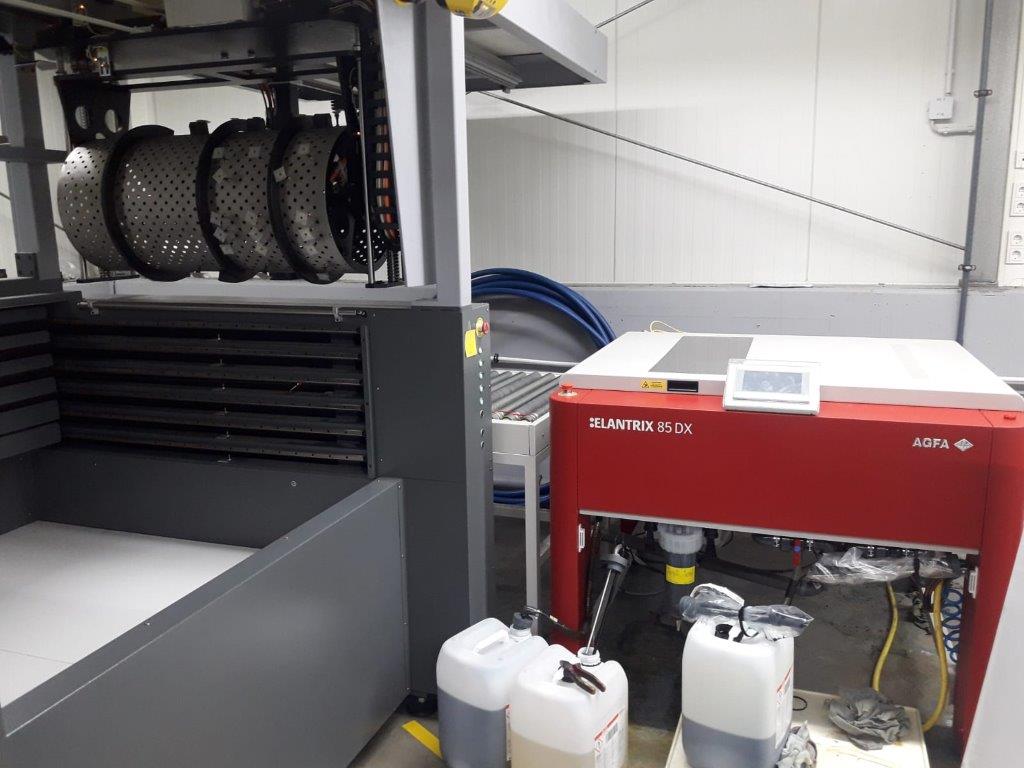

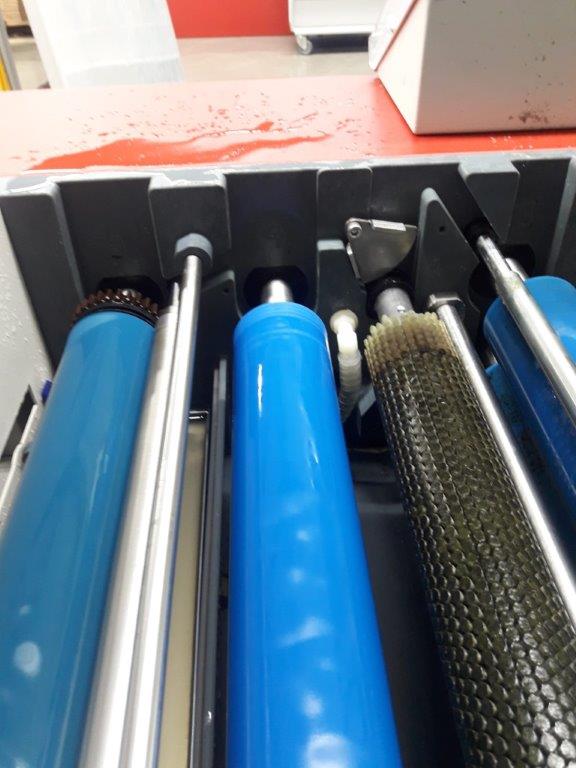

- Offset plate developing machine AGFA Elantrix DX 85 with two brush rollers, year of manufacture 2017.
