Description
- 10 chain stations 370
- 1 cover feeder 1529

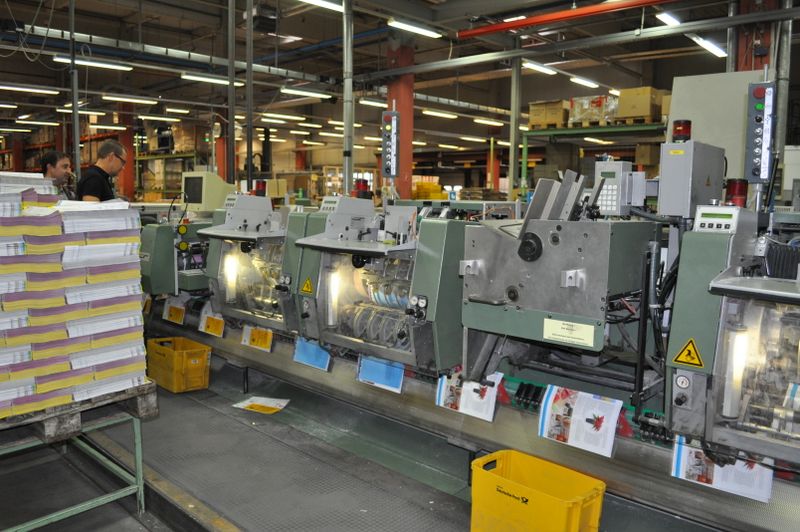

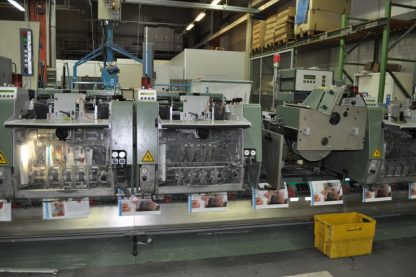

- 9 feeder model 370
- 4 double universal bases
- 2 card tippers sached

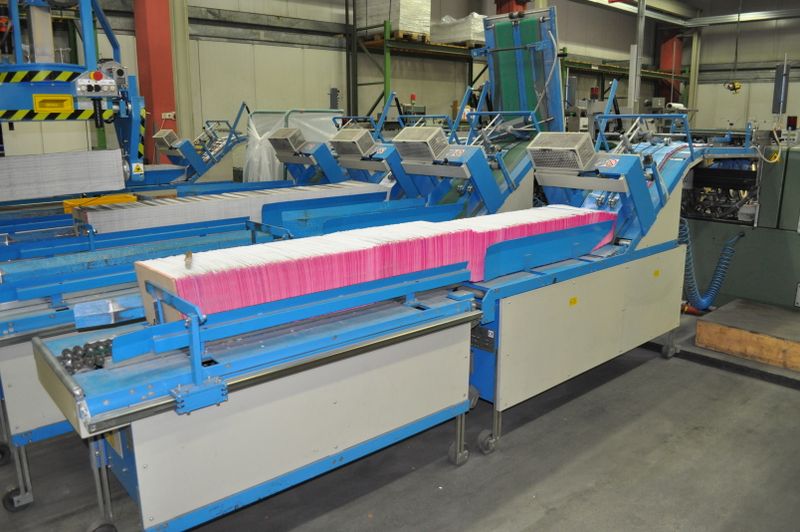

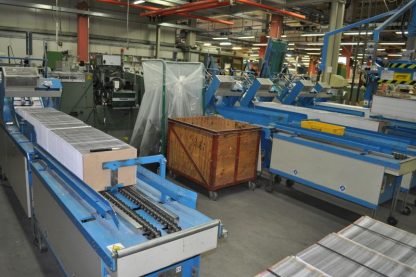

- 5 stream feeders Make: OMG Model: Olympic 150
- Stitching unit model 390 with Stitching control and 4 stitching heads model HK75

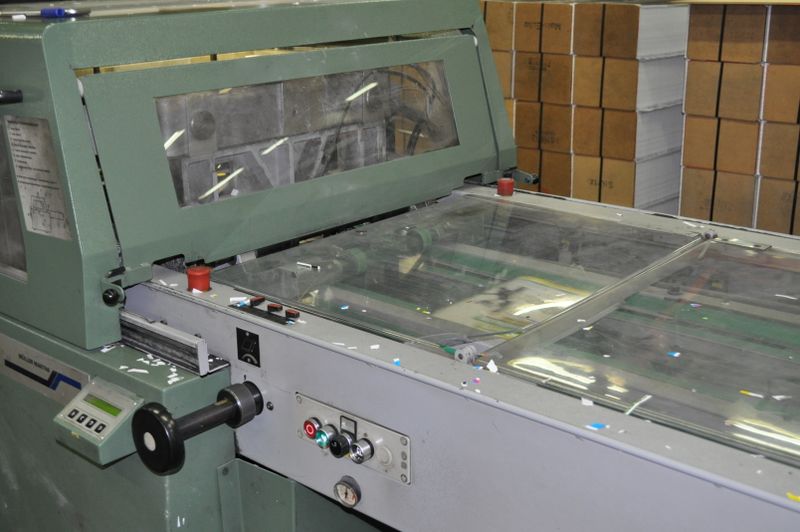

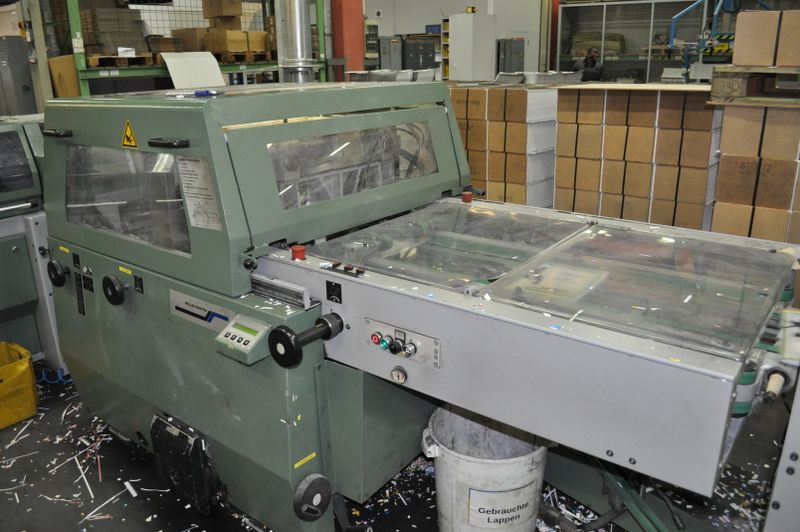

- Trimmer model 361

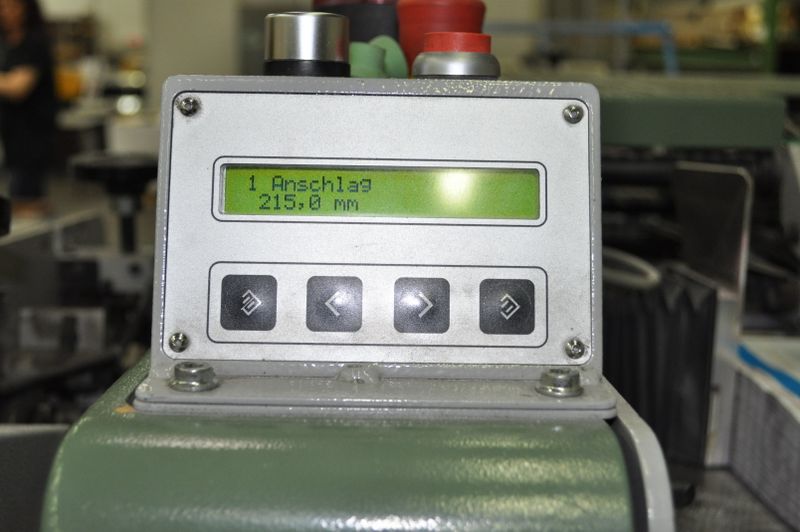

- Electronic control sheet and stiching
Muller Martini inserter model 6287 with 4 feeders
Inyect Burs with

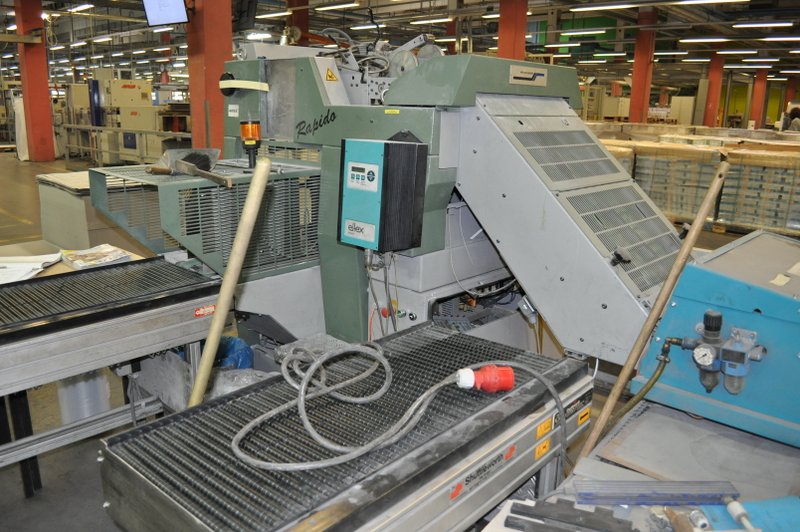

Stacker Muller Martini Rapido

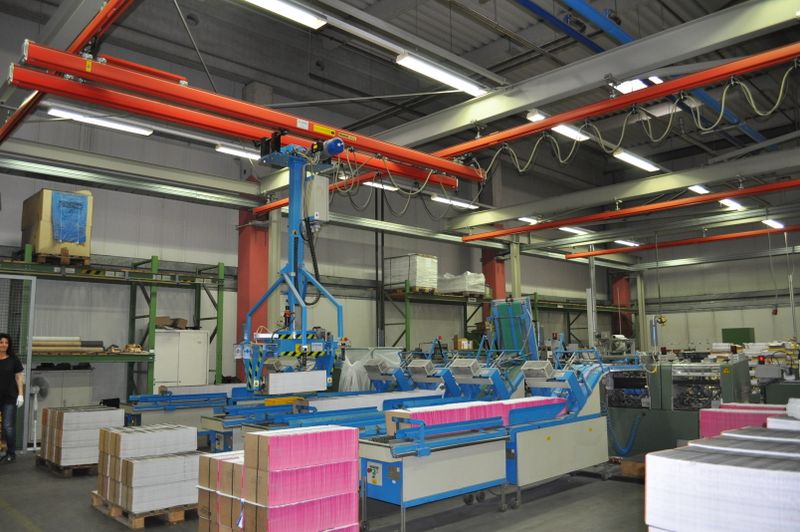

1 Loglifter model AGRAMA
Max: untrimmed size : 480 x 320 mm
Min: untrimmed size : 153 x 108 mm
Max: trimmed size : 475 x 300 mm
Min: trimmed size : 148 x 105 mm
Product thickness : max. 13 mm
Max. lap thickness : 18 mm
Min. lap thickness : 6 mm
Capacity : max. 13.000 cycles/h.
Further complete with: Instruction manuals
Spare part catalogue- Electrical wiring diagram
