Description

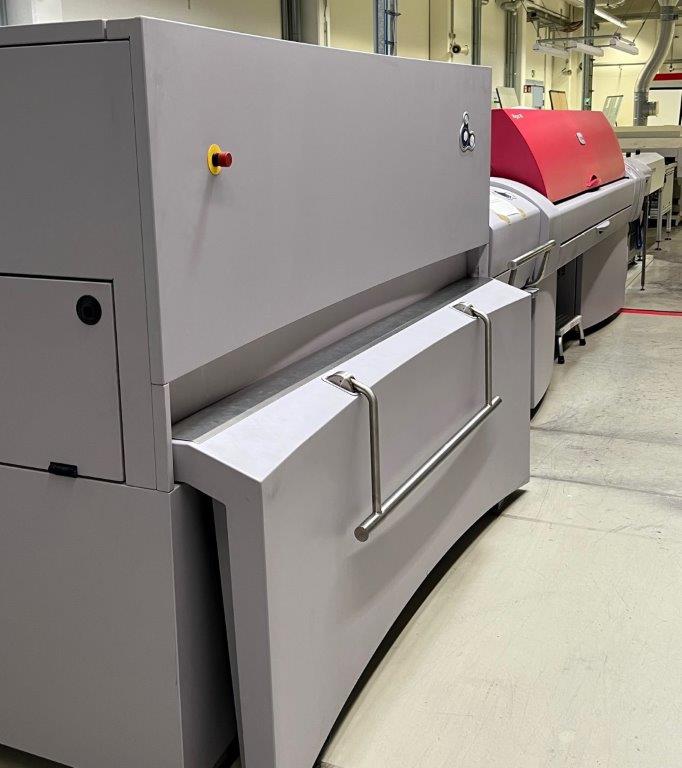

fully automatic large format thermal platesetter KODAK Magnus VLF Platesetter 5183 MT right hand output with 4 fold MCU multi cassette loading unit
from year 2006
with Prinergy Connect
PlateCounter only known since 2014/2015.
MT172 – approx. 102.000
without internal plate punch
new Laserhead TH-3 X-Speed 36.3 pph , 2400 dpi year 2015
MVLF MCU TH3 S
Power=41 Watts @ 50.8 Amps, Laser On Time A = 7617.83 Hours
min. plate size 483 x 394 mm
max. plate size 1296 x 2083 mm (small drum, so no further upgrading possible)
square spot technology
multi cassettenloader for capacity of 4×75 plates 0,4mm with paper (or 4×100 by 0,3mm)
with

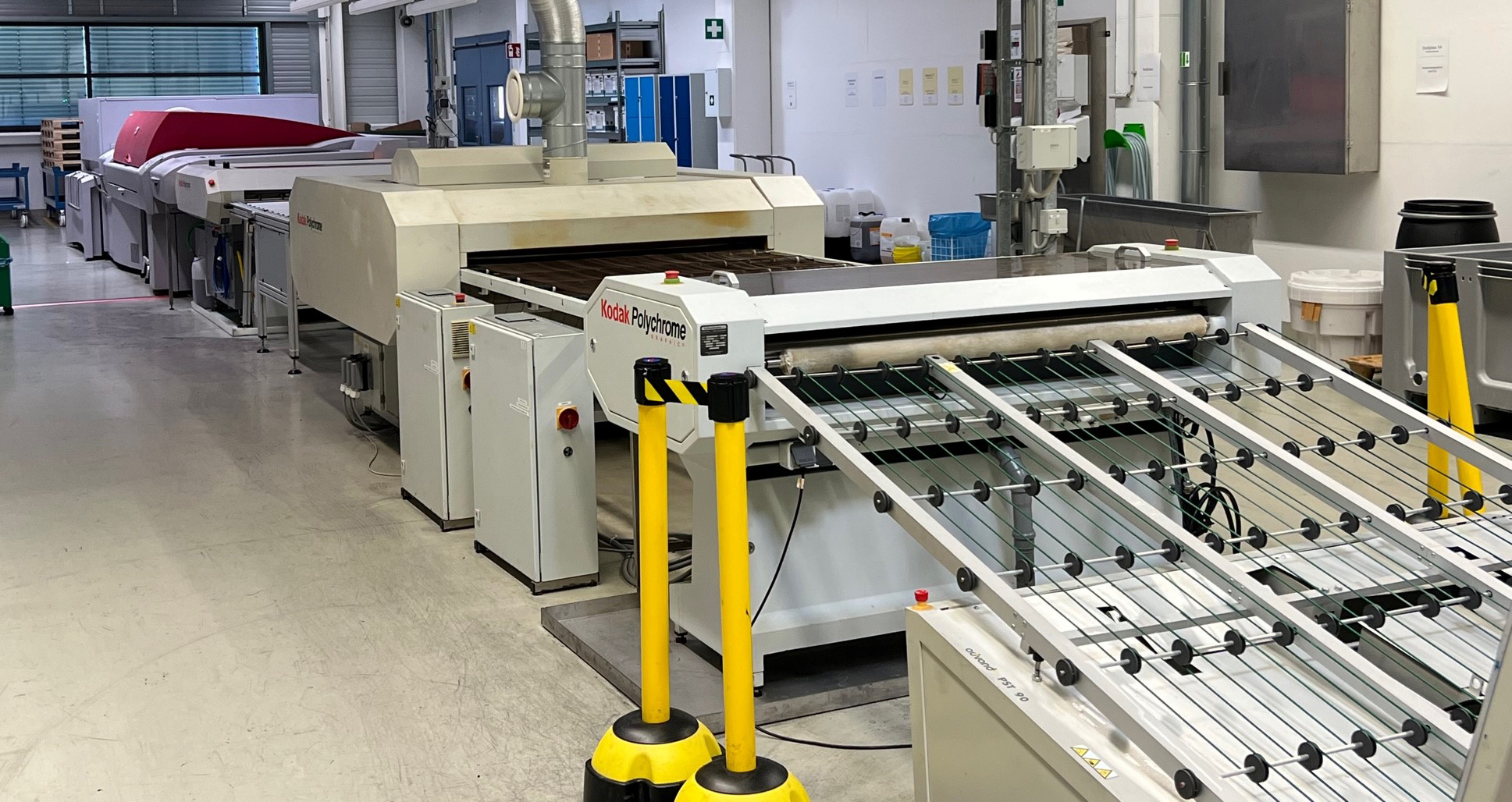

Thermal plate processor TECHNO GRAFICA TPP-HS
Baking oven TECHNO GRAFICA EBO
Flushing rubber lining TECHNO GRAFICA SPG
Stacker pallet stacker with transport carriage TECHNO GRAFICA
