Description

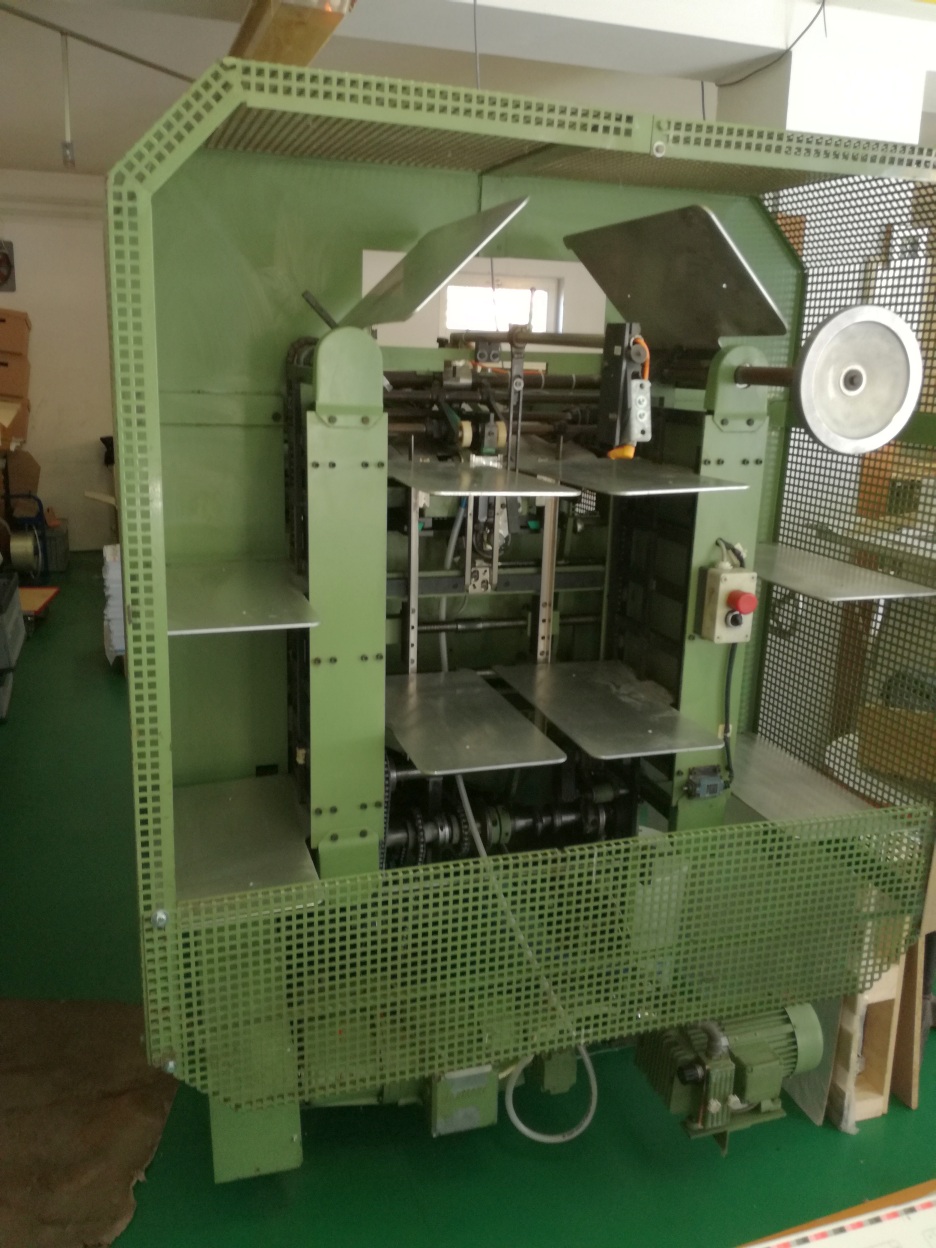

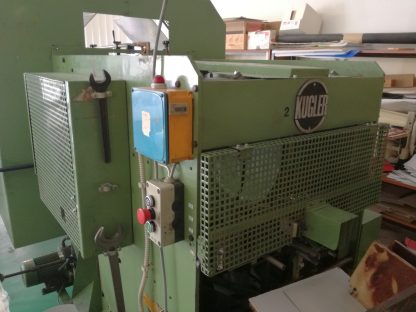

Fully automatic high performance die cutter Renz Kugler 341-2R for calendars and ring binders
1 tool for calendar (50cm, pitch 3:1, 4,5×4,5mm with thumb hole)
1 tool for ring binders (ca 32cm, pitch 3:1, 6,5×6,5mm)
1 tool for ring binders ( approx. 32cm, pitch 2:1, round hole 4.5mm)
Conveniently operated by one person, Kugler punching machines work in the smallest of spaces. With non-stop feeder and gentle material infeed from above. Problem-free processing of mixed materials (e.g. cardboard and plastic). Precise alignment before the die cutting process ensures maximum accuracy. For perforating ring binder inserts, cardboard and plastic calendar and index sheets, paper for wire-bound items, and more.
The tool change requires only a few hand movements. After die-cutting, a turning wheel ensures that the sequence is maintained for printed and numbered products that are transported to a delivery. Precise and easy adjustment for register.
Performance features
– Very low maintenance
– High efficiency
– user friendly
– fastest format changeover
Technical data
– Working width: 500 mm
– Format range punched page: max. 500 mm
– Format range unpunched page: max. 500 mm
– Punching thickness: max. 3 mm per layer
– Punching speed: 110 cycles
– Paper line: automatic with non-stop paternoster feeder
– Paper delivery: automatic in box delivery with jogger
– Paper grammage: min. 60 gr./m², max. 2 mm (restrictions due to paper grammage/quality are possible)
– Register punching: yes (not included)
– interchangeable tools
– the tool change requires only a few hand movements
– Quick format change due to manual setting wheels
– adjustable edge distance
– punch that can be switched off
– Space requirement: 3.30 x 1.50 m
– Net weight 1580 kg
