full automated 8up thermal CTP system Agfa Avalon N 8-22 S

Categories: ,


Anfrage zum Produkt:
full automated 8up thermal CTP system Agfa Avalon N 8-22 S (Art.Nr. 40009)

    Inquiry:

    Math Captcha + 74 = 76

    Description

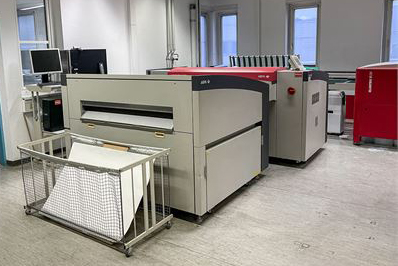

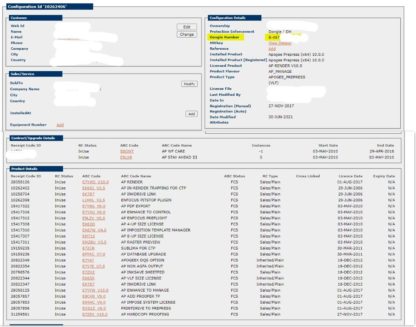

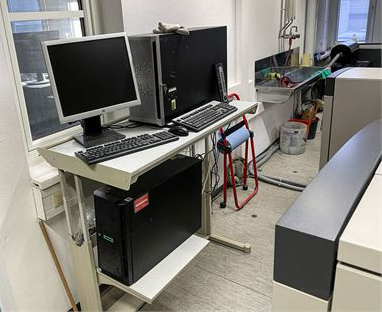

    full automated 8up thermal CTP system Agfa Avalon N 8-22 S with Apogee Rip and Workflow
    age 9-2012
    with full Agfa maintenance contract

    includes

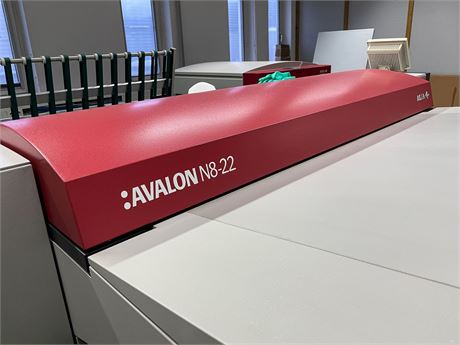

    Agfa Avalon N 8-22 S
    internal plate punch Autoplate 780mm for KBA Rapida 106
    64 Diodes
    speed approx. 22 per hour @ 2400 dpi
    resolution 2.400 dpi
    max. plate size 1.160 mm x 940 mm
    min. plate size  450 mm x 370 mm
    plate thickness 0,15 – 0,30 mm

    cooling system Temperature Control
    single cassette unit SAL (1 x 100 plates capacity) with one trolley
    conveyor  with 90° degree corner deflection

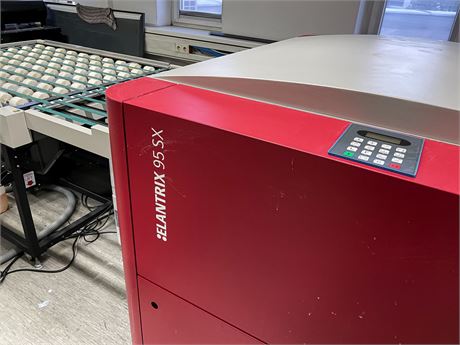

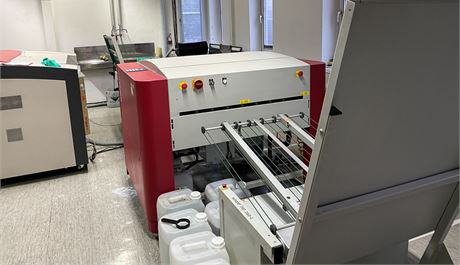

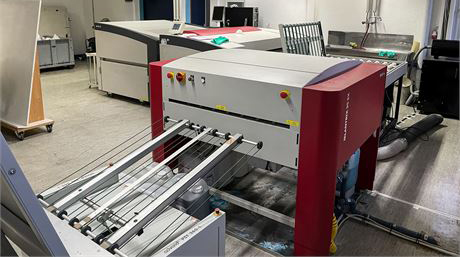

    plate processor Agfa Elantrix 95 SX

    plate stacker

    AGFA-Avalon-N8-12-N8-22-1

    Additional information

    Baujahr

    2012

    Manufacturer

    Agfa

    Typ
