Description

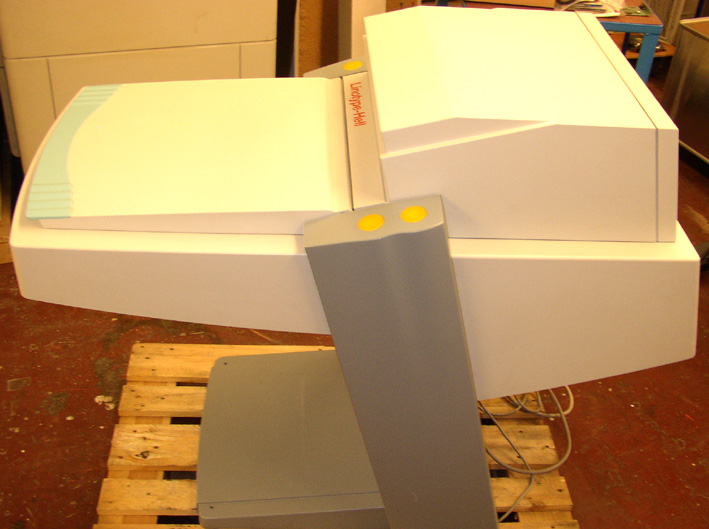

flatbed scanner Heidelberg Topaz 3240-2 with robotic attachment and LinoColor 6
year 1997

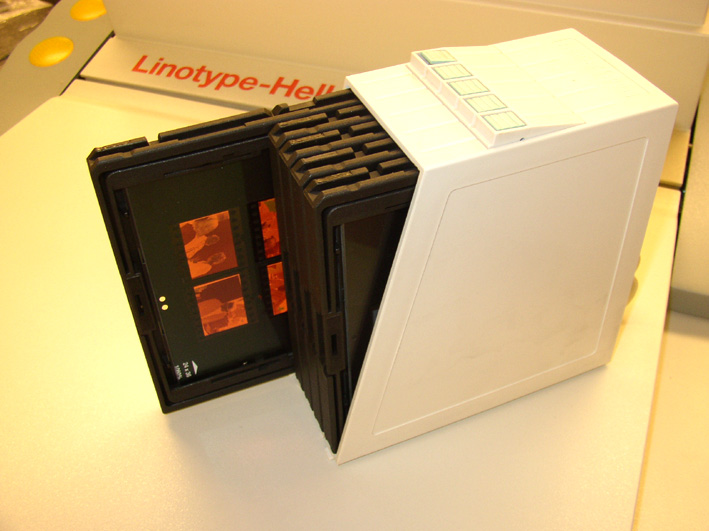

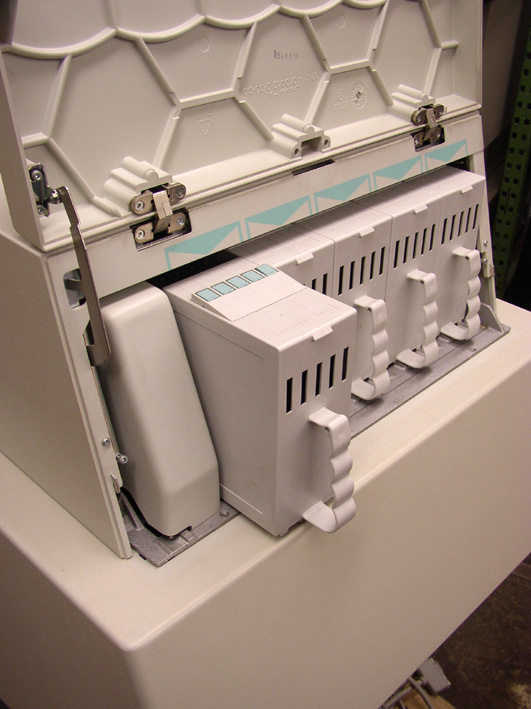

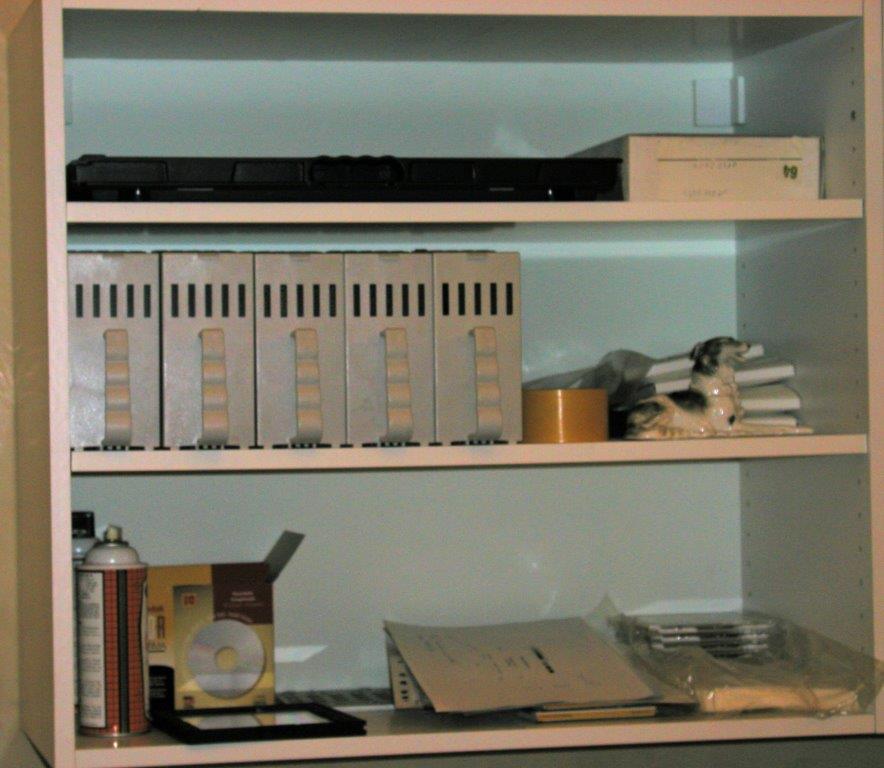

The robot option, allows longer unattended scanning by providing space for a total of 25 slide holders, which are fed in one after the other and processed automatically. Each holder can hold up to nine 35mm slides (or originals up to 10 x 13 cm), giving a total scanning capacity of 225 images. Five original holders are grouped in a cassette and can be removed and reloaded during operation, if necessary even after the prescans have been made. The prescans can be transferred via the network to any workstation, where they can be adjusted and then placed back in the fine scan queue. As soon as the corresponding original holder is inserted again – it is identified by a code – the scanner automatically starts producing the fine scans.
Trilinear colour CCD line with 3×8000 picture elements
AutoScaling special hardware for stepless calculation of the scale in the scanner
AutoSharpening special hardware for optimal and fast calculations in the scanner
Software for redigitisation of films CopyDot and descreening

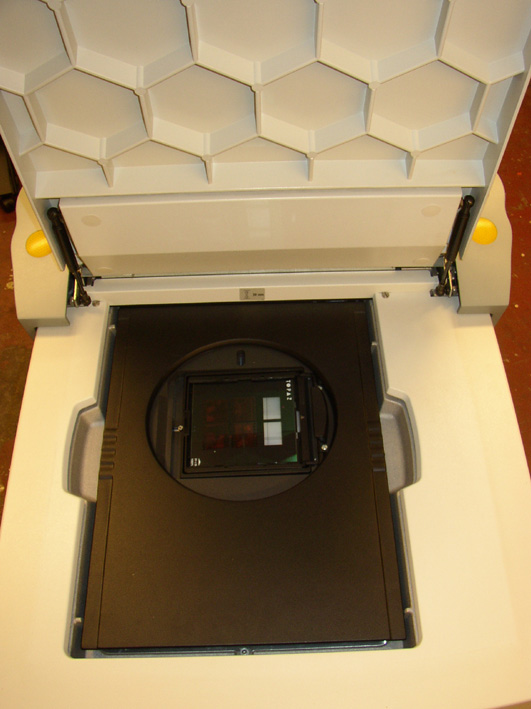

Original holder:
– 2 universal trays for viewing originals, max. format 305x457mm
– 1 copy tray with 4 register strips
Mounting aids:
– Light table integrated in scanner
– Mounting ruler for exact alignment of originals on the original holder
Original size max. 305x457mm for top view, 250x457mm for top view
Types of originals Transparency and top view, colour and black-and-white, half-tone
and line originals, positive and negative, 3 D originals up to max. 20 mm height
Scale range: 20 – 2500
Scale calculation Stepless with AutoScaling hardware
Sharpness calculation AutoSharpening-Hardware in scanner
Scanning resolution max.: optical 2000 lines/cm(5080 dpi),
interpolated resolution 4330 lines/cm(11000 dpi);
Differentiable density range 3.7 D, measured on the film output of a grey wedge
Resolvable density max. 4.0 D, measured on the film output of a grey wedge
Signal resolution 16 bit per pixel and colour (linear)
Interface SCSI-2 for workstation connection
Mains voltage 90 -130 V, 180 – 260 V, 50 – 60 Hz
Power consumption approx.150W
Ambient conditions 8 – 27°C, 30 – 70% relative humidity
Dimensions (WxHxD) approx. 700x900x1300mm
Weight approx.150 kp
