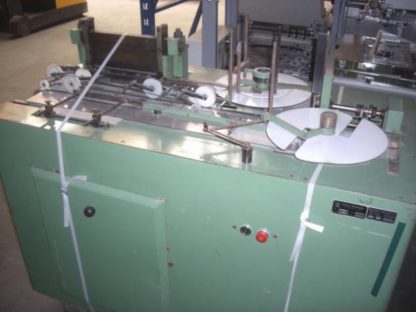

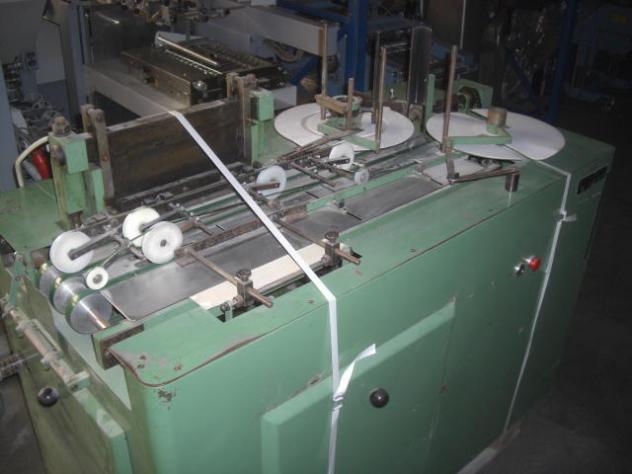

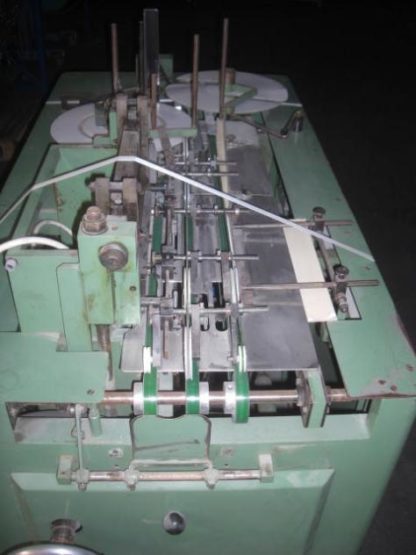

Description
for punching the binding perforation for spiral, wire comb and plastic binding, as well as punching for filing systems, corner rounds, tear-off perforations, register inserts, etc.
Easy to operate by one person due to the clear arrangement of the work cycles on one level.
Proven “plate system” to work from stack to stack without turning.
Separation of individual layers from the paper stack by means of separating discs.
Aligning the paper layer and punching.
Outlet in storage box in the same order.
Easy conversion to other formats.
Quick tool change.

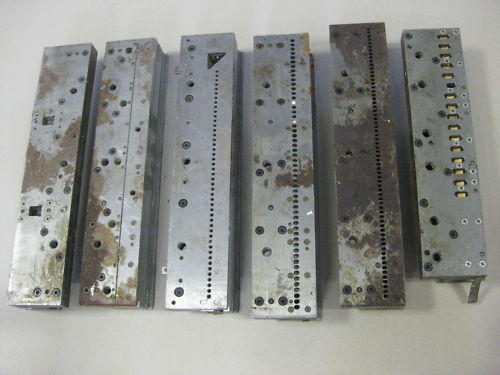

Interchangeable punching tools for wire and plastic binding, also combined with thumb hole, filing hole and/or tear-off perforation (all options)
Technical data
Format range max. 320 x 320 mm
Format range min. 148 x 100 mm
Punching thickness up to 2 mm
built-in punching tool
Output 4,200 to 5,000 punches / hour
Stacking height up to 8 m / hour
Space requirement 1.80 m x 0.90 m
Weight 450 kg
